Flow Controller


This projects makes use of a computer controlled sprinkler system (rain8net), custom Java based software (JValveView), and inexpensive solenoid relays to build a fully automated flow control system for the evaluation of sensor films towards various volatile organic compounds (VOC).

Flow system schematic

Figure 1.

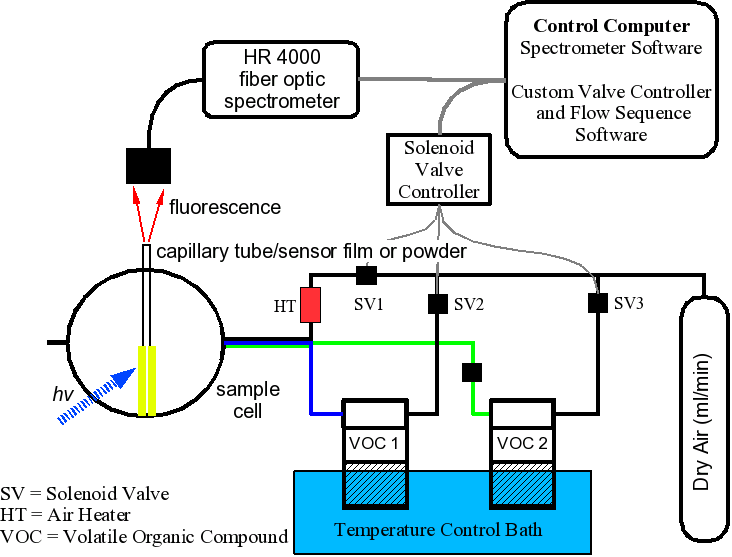

Schematical representation of the VOC flow system.


Flow system

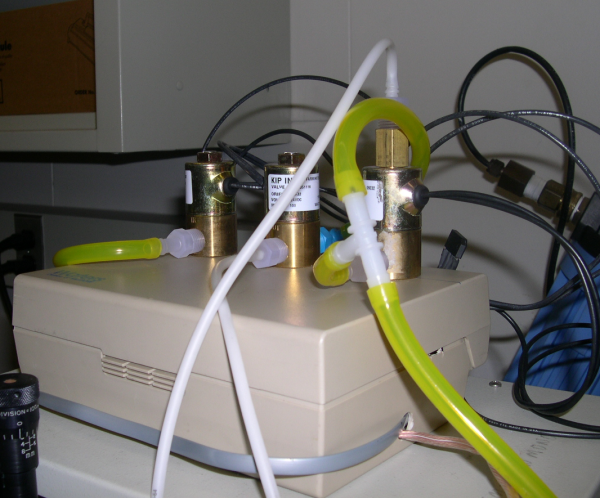

Figure 2.  The actual flow system.  The solenoid valves can clearly be seen on the top.


flow system

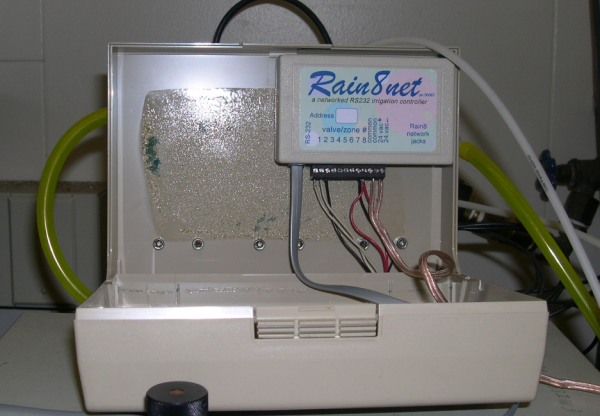

Figure 3. The rain8net controller with all the connecting wires.
